Name: Tremec T-56 Magnum Manual Transmissions TUET16884 - Amend's Store
Price: 3211.00 USD
Availability: InStock

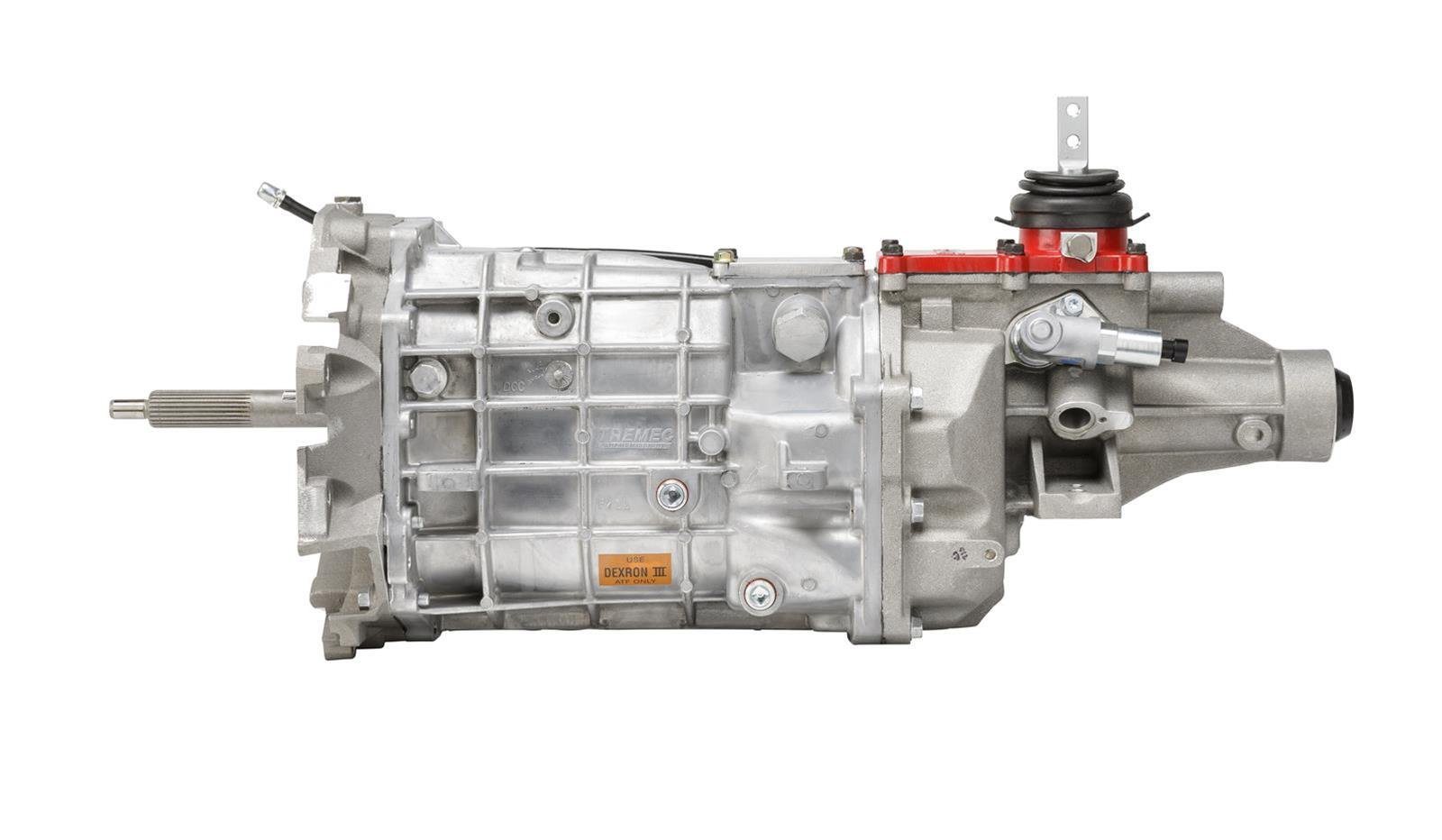

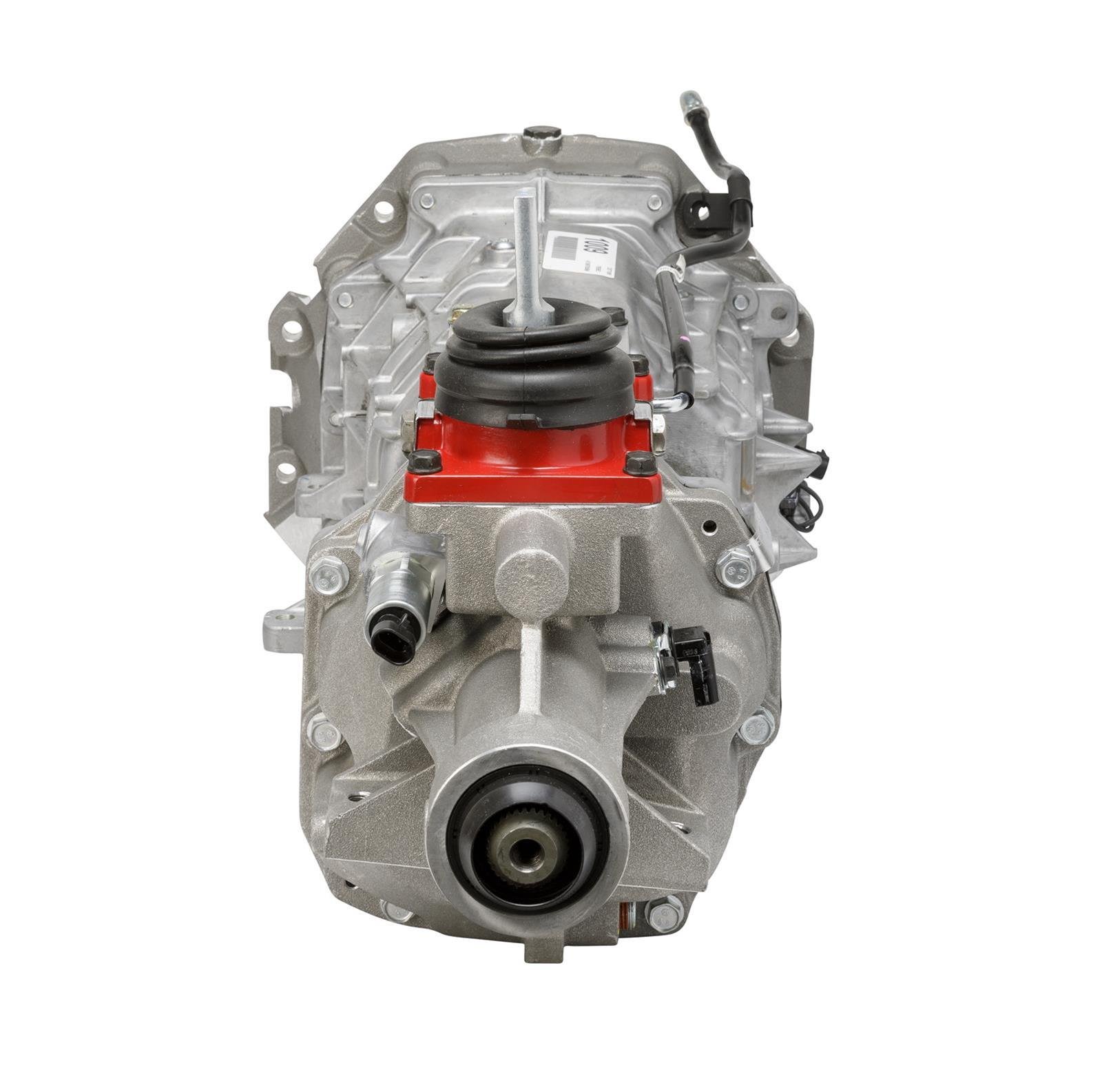

Tremec T-56 Magnum Manual Transmissions TUET16884

Tremec T-56 Magnum Manual Transmissions TUET16884 - Image 2

Tremec T-56 Magnum Manual Transmissions TUET16884 - Image 3

Tremec T-56 Magnum Manual Transmissions TUET16884 - Image 4

Tremec T-56 Magnum Manual Transmissions TUET16884 - Image 5

Tremec T-56 Magnum Manual Transmissions TUET16884 - Image 6

Tremec T-56 Magnum Manual Transmissions TUET16884 - Image 7

Tremec T-56 Magnum Manual Transmissions TUET16884 - Image 8

$3,211.00

3 Years Guarantee
Free 90 days return
Installment options

Manual Transmission, 6 Gears, 1.125 in. Shaft Diameter, 26 Input Spline, 31 Output Spline, Slip-on Yoke Style, Aluminum, Ford, Each

Category: Manual Transmissions

Description
Reviews (0)

Description

Overview

Brand: Tremec

Manufacturer’s Part Number: TUET16884

Part Type: Manual Transmissions

Product Line: Tremec T-56 Magnum Manual Transmissions

Summit Racing Part Number: REM-TUET16884

Number of Gears: 6

Input Shaft Diameter: 1.125 in.

Input Spline Quantity: 26

Output Shaft Spline Quantity: 31

Bellhousing Included: No

Yoke Included: No

Yoke Style: Slip-on

Shifter Included: No

First Gear Ratio: 2.97:1

Second Gear Ratio: 2.10:1

Third Gear Ratio: 1.46:1

Fourth Gear Ratio: 1.00:1

Fifth Gear Ratio: 0.80:1

Sixth Gear Ratio: 0.63:1

Case Material: Aluminum

Remanufactured: No

Quantity: Sold individually.

Notes: Designed for electronic or mechanical speedometers. The 7-tooth internal speedometer drive gear is included.

Tremec T-56 Magnum Manual Transmissions

Known for robust, superior quality, Tremec T-56 Magnum manual transmissions are brand new from the ground up with a 2.97 first gear. They can withstand up to 700 lbs.-ft. of torque, with gears featuring substantially increased face widths and 2-piece laser-beam welded construction. This allows for greater control of the tooth angles, pitch, and alignment.

Additional benefits include:

* Bolstered one-piece countershaft to resist distortion
* Stronger input shaft
* New synchronizers featuring fine-tooth angles
* Redesigned shift forks
* An extensively modified transmission case to prevent leaks under high-stress conditions and increase overall power-handling capabilities
