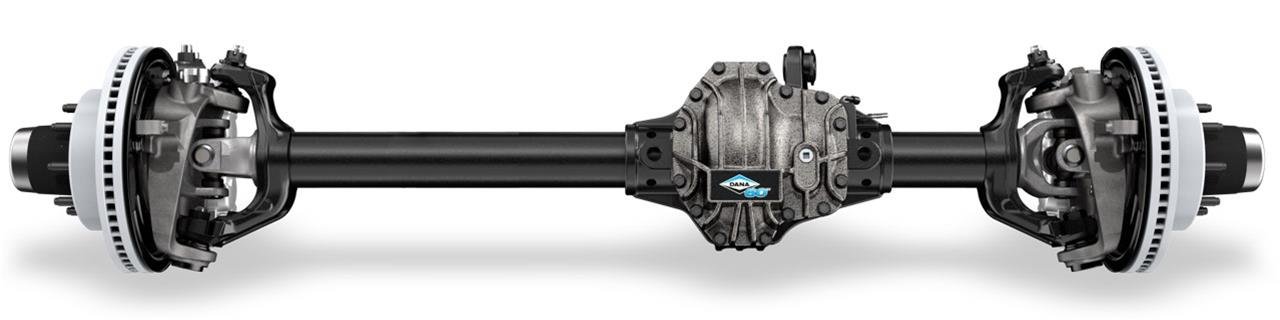

Spicer Drivetrain Products Ultimate Dana 60 Axle Assemblies 10146347

$6,950.00

3 Years Guarantee
Free 90 days return
Installment options

Axle Assembly, Ultimate Dana 60 Crate Axle, Bracketless, Front, 5.38 Gear, ARB Air Locker, Each

Category: Differential & Rear-End Components

Description
Reviews (0)

Description

Overview

Name: Spicer Drivetrain Products Ultimate Dana 60 Axle Assemblies 10146347 - Amend's Store
Price: 6950.00 USD
Availability: InStock

Brand: Dana Spicer Drivetrain Products

Manufacturer’s Part Number: 10146347

Part Type: Axle Assemblies

Product Line: Spicer Drivetrain Products Ultimate Dana 60 Axle Assemblies

Summit Racing Part Number: SDH-10146347

UPC: 023913840266

Axle Type: Front inner and outer

Overall Length (in.): 69.00 in.

Axle Shafts Included: Yes

Axle Material: 4340 chromoly

Axle Shaft Spline Quantity: 35

Brakes Included: Yes

Brake Type: Disc brake

Caliper Color: Natural

Center Section Type: ARB Air Locker

Third Member Included: Yes

Ring and Pinion Included: Yes

Ring and Pinion Ratio: 5.38:1

Wheel Studs Included: Yes

Wheel Stud Pattern: 8 x 6.50 in.

Bearings Included: Yes

Seals Included: Yes

Remanufactured: No

Quantity: Sold individually.

Notes: Axle assemblies feature Warn Premium 35 spline locking hubs.

Spicer Drivetrain Products Ultimate Dana 60 Axle Assemblies

Spicer Drivetrain Ultimate Dana 60 axle assemblies upgrade your axles for even better performance over rocks, across sand, and through mud. They incorporate many innovations to deliver optimal performance for your Jeep right from the start. Stronger axle shafts, higher torque loads, and rock-solid seals for peak protection, give you the Dana advantage to tackle the extreme punishment of off-roading.

Spicer Dana 60 advantages:

* Spicer 35 spline SAE-4340 nickel chromoly steel axle shafts
* High-strength, heavy-gauge brackets
* Available with either an Eaton ELocker or ARB AirLocker
* Heavy-duty 8 x 6.5 in. wheel bolt pattern
* Nodular iron diff cover with protective ribbing
* Spicer 1350 strap-style/half-round end yoke
* Upgraded heavy-duty brakes with plug-and-play ABS system

Front axle assemblies:

* Massive Spicer SPL-70 U-joints—exclusive to Dana
* Warn 35-spline hub locks
* Spicer 10 in. ring and pinion gear inside
* Axle tubes: 3.5 in. tube diameter/.370 in. wall thickness

Rear axle assemblies:

* Spicer 9.75 in. ring and pinion gear inside
* Axle tubes: 3.5 in. tube diameter/.390 in. wall thickness
