Description

Overview

Name: FTI Performance 700R4 Level 2 Transmission Packages FTK7R4-2E - Amend's Store
Price: 2180.00 USD
Availability: InStock

Brand: FTI Performance

Manufacturer’s Part Number: FTK7R4-2E

Part Type: Automatic Transmissions

Product Line: FTI Performance 700R4 Level 2 Transmission Packages

Summit Racing Part Number: FTI-FTK7R4-2E

UPC: 887753816207

Number of Gears: 4

Bellhousing Bolt Pattern Manufacturer: Chevy

Transmission Shift Pattern: Forward

Valve Body Style: Automatic

Transmission Advertised Horsepower Rating: 450

Torque Converter Included: Yes

Flexplate Included: No

Transmission Controller Included: No

Wiring Harness Included: No

Transmission Cooler Included: No

Advertised Flash Stall Rating: 2,400 rpm

Trans-Brake Included: No

Lockup Compatible: Yes

Transmission Pan Style: Stock

Transmission Pan Material: Steel

Transmission Pan Finish: Natural

Tailshaft Length (in.): 7.500 in.

Yoke Style: Slip-on

Input Spline Quantity: 30

Input Shaft Material: Hardened steel

First Gear Ratio (Automatic Transmissions): 3.06

Transmission Case Style: OEM

Transmission Case Material: Aluminum

Transmission Case Finish: Natural

Transmission Shield Built In: No

Flexplate Shield Built In: No

Fluid Fill Location: Case

Transmission Fluid Included: Yes

Transmission Fluid Quantity Included: 12 qt.

Dipstick Included: Yes

Remanufactured: Yes

Quantity: Sold as a kit.

Notes: Designed for use with Edelbrock carburetor. Includes TV cable, filler tube and TV correction for carbureted intake manifolds. Includes 2,400 stall speed rating RPM range torque converter.

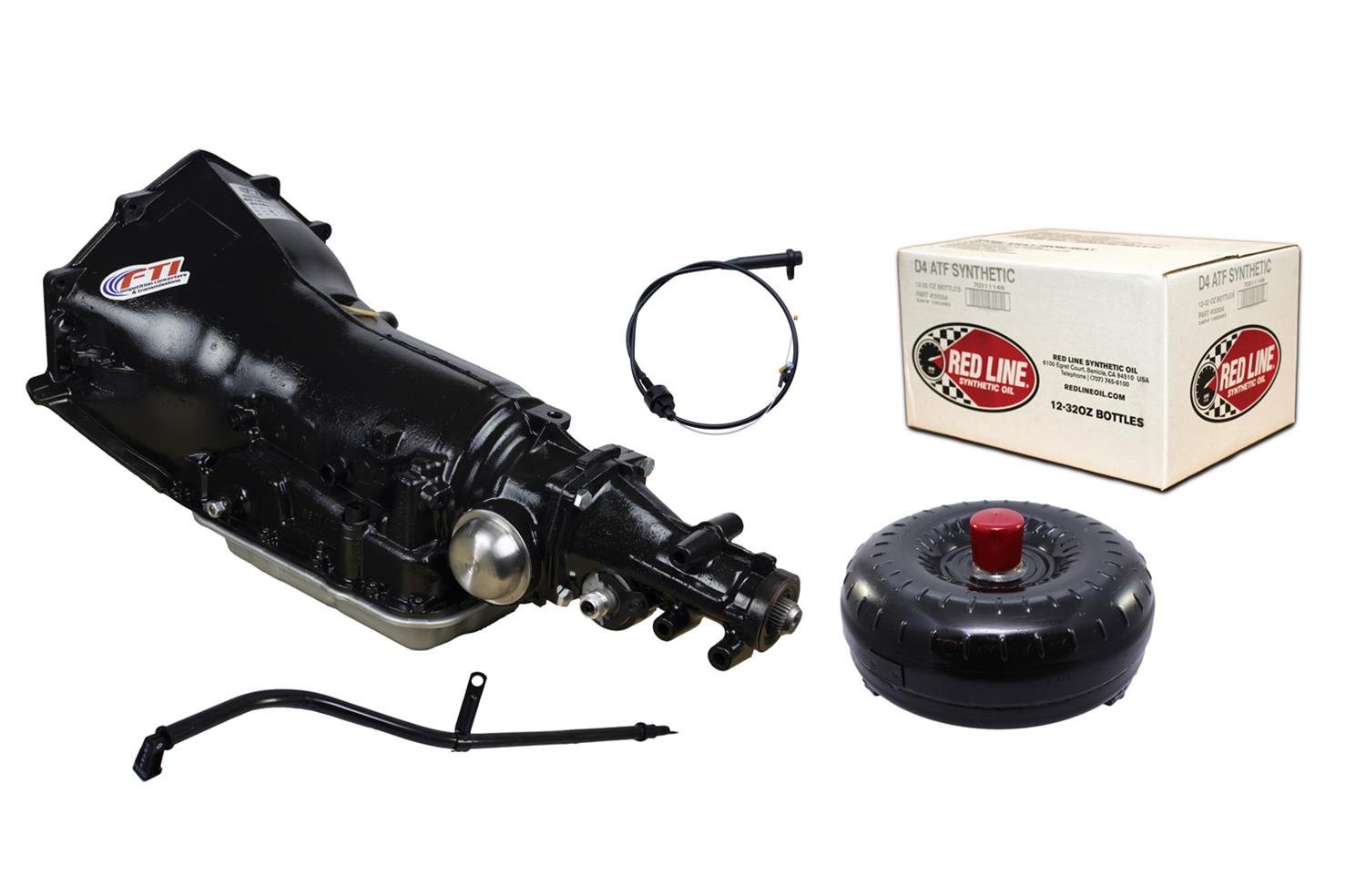

FTI Performance 700R4 Level 2 Transmission Packages

FTI Performance 700R4 Level 2 transmission packages are designed for street rodders or cruisers who want mild power, fuel economy, and reliability. They include a torque converter to complete the installation.

FTI Performance 700R4 Level 2 transmissions packages feature:

* 9-clutch 3-4 high energy pack
* High-energy performance band
* Performance servo
* Oversized performance boost valve
* Hardened sun gear drive shell
* Hardened pump rings
* Mechanical speedometer drive gear
* Throttle TV cable
* External lockup plug connector
* Filler tube and stick
