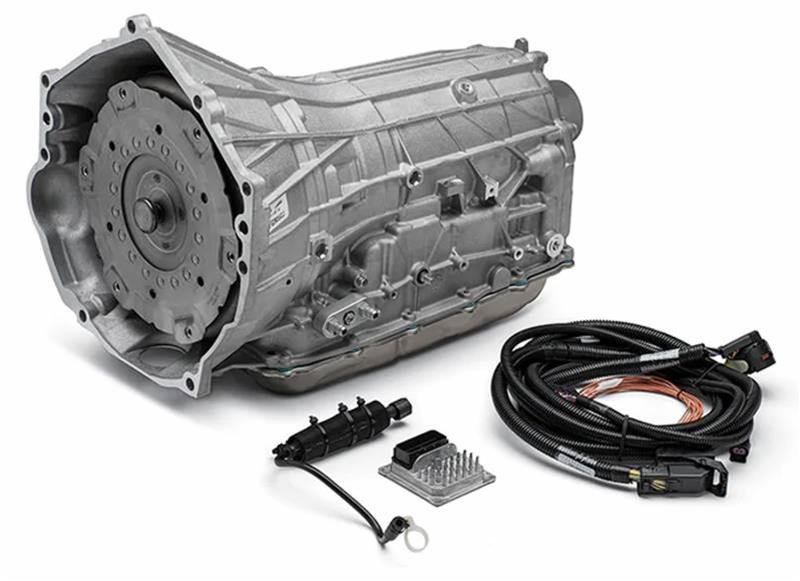

Chevrolet Performance SuperMatic 10L90-E Transmissions 19420480

$4,250.00

3 Years Guarantee
Free 90 days return
Installment options

Automatic Transmission, SuperMatic 10L90-E, Converter, 650 lb. ft. Torque, Controller, Harness, Chevrolet, Gen V Crate Engines, Kit

Category: Automatic Transmissions

Description
Reviews (0)

Description

Overview

Name: Chevrolet Performance SuperMatic 10L90-E Transmissions 19420480 - Amend's Store
Price: 4250.00 USD
Availability: InStock

Brand: Chevrolet Performance

Manufacturer’s Part Number: 19420480

Part Type: Automatic Transmissions

Product Line: Chevrolet Performance SuperMatic 10L90-E Transmissions

Summit Racing Part Number: NAL-19420480

Number of Gears: 10

Bellhousing Bolt Pattern Manufacturer: Chevy

Transmission Shift Pattern: Forward

Valve Body Style: Automatic

Torque Converter Included: Yes

Flexplate Included: No

Transmission Controller Included: Yes

Wiring Harness Included: Yes

Transmission Cooler Included: No

Advertised Flash Stall Rating: Stock

Trans-Brake Included: No

Lockup Compatible: No

Transmission Pan Style: Stock

Transmission Pan Material: Steel

Transmission Pan Finish: Natural

Yoke Style: Slip-on

First Gear Ratio (Automatic Transmissions): 4.70

Transmission Case Style: OEM

Transmission Case Material: Aluminum

Transmission Case Finish: Natural

Transmission Shield Built In: No

Flexplate Shield Built In: No

Fluid Fill Location: Case

Transmission Fluid Included: No

Dipstick Included: No

Remanufactured: No

Quantity: Sold as a kit.

Chevrolet Performance SuperMatic 10L90-E Transmissions

Chevrolet Performance SuperMatic 10L90-E transmissions offer a technologically advanced balance of performance and efficiency when matched with LT crate engines, including the LT1, LT4 and LT5. The kits feature a slip yoke-type tail shaft, allowing it to be used with the conventional prop shaft design used in most older vehicles.

Additional highlights:

* Electro/hydraulic controls with clutch-to-clutch shifting
* Four gearsets and six clutches: two brake clutches and four rotating clutches
* 7.39:1 overall gear ratio spread
* Aggressive 4.70:1 first gear for enhanced off-the-line performance
* Three overdrive gears, with 0.64:1 top gear ratio
* Output torque rating of 650 lb.-ft.
* Includes torque converter and controller
* Includes cooler line adapter with 6AN fittings
* Includes production-style vent tube
