Name: Briggs Stratton 13R232 0001 F1 Horizontal Engine - Amend's Store
Price: 211.00 USD
Availability: InStock

$211.00

Description

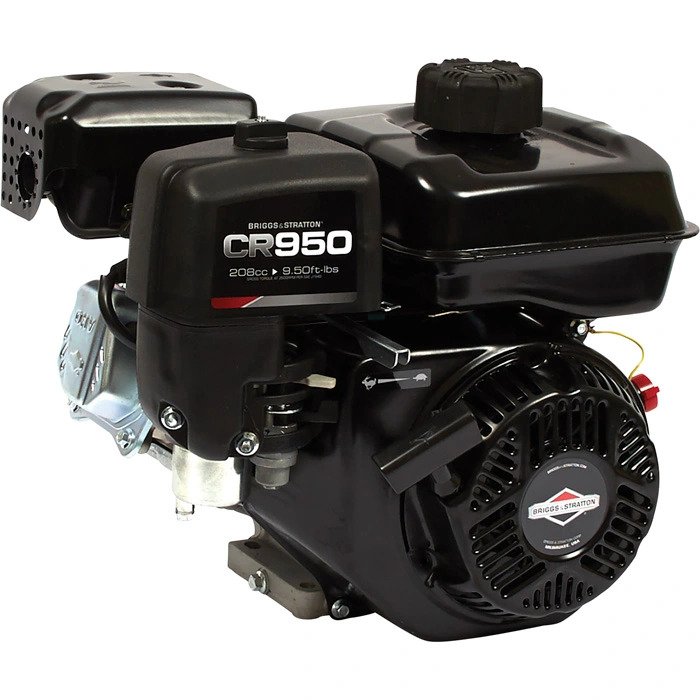

Briggs Stratton 13R232-0001-F1 Horizontal Engine, CR950 Series, 208cc, 9.5 ft/lbs Gross Torque, 3/4-inch x 2-27/64-inch Crankshaft, Recoil Start

BRAND	Briggs Stratton
WARRANTY	2 Year Consumer / 1 Year Commercial
DISPLACEMENT	208cc
STARTER TYPE	Recoil
CRANKSHAFT ORIENTATION	Horizontal
CRANKSHAFT TYPE	Straight
CRANKSHAFT DIAMETER	3/4″
CRANKSHAFT LENGTH	2-27/64″
CRANKSHAFT END TAPPED SIZE	5/16 – 24
CRANKSHAFT KEYWAY WIDTH	3/16″
CYLINDER BORE TYPE	Cast Iron Sleeve
COOLING SYSTEM	Air Cooled
AIR CLEANER TYPE	Cartridge with Pre Filter
FUEL TYPE	Gas
LUBRICATION SYSTEM	Splash
PTO HEIGHT	4.17″
TORQUE	9.5 lbs
BELT CIRCLE	2.56″ SAE
OIL GUARD	Yes
PTO BALL BEARING	Yes
