Bowler Performance GM LS T-56 Magnum 6-Speed Transmission Packages 1511009

$4,145.00

3 Years Guarantee
Free 90 days return
Installment options

Trans. Package, GM LS Tremec 6 SPD – 2.66, 1.78, 1.30, 1.00, .80, .63, Alum Bell, Clutch, Flywheel, Bolt kit, Hyd T/O Bearing, Fluid, Pigtails, & Yoke

Category: Manual Transmissions

Description
Reviews (0)

Description

Overview

Name: Bowler Performance GM LS T-56 Magnum 6-Speed Transmission Packages 1511009 - Amend's Store
Price: 4145.00 USD
Availability: InStock

Brand: Bowler Performance Transmissions

Manufacturer’s Part Number: 1511009

Part Type: Manual Transmissions

Product Line: Bowler Performance GM LS T-56 Magnum 6-Speed Transmission Packages

Summit Racing Part Number: BTM-1511009

Number of Gears: 6

Input Shaft Diameter: 1.125 in.

Input Spline Quantity: 26

Output Shaft Spline Quantity: 31

Output Shaft Spline Diameter (in.): 1.360 in.

Bellhousing Included: Yes

Yoke Included: Yes

Yoke Style: Slip-on

Shifter Included: No

First Gear Ratio: 2.66:1

Second Gear Ratio: 1.78:1

Third Gear Ratio: 1.30:1

Fourth Gear Ratio: 1.00:1

Fifth Gear Ratio: 0.80:1

Sixth Gear Ratio: 0.63:1

Case Material: Aluminum

Remanufactured: No

Quantity: Sold as a kit.

Notes: Requires a shifter with 0.890 in. center to center 3/8 in. diameter mounting holes.

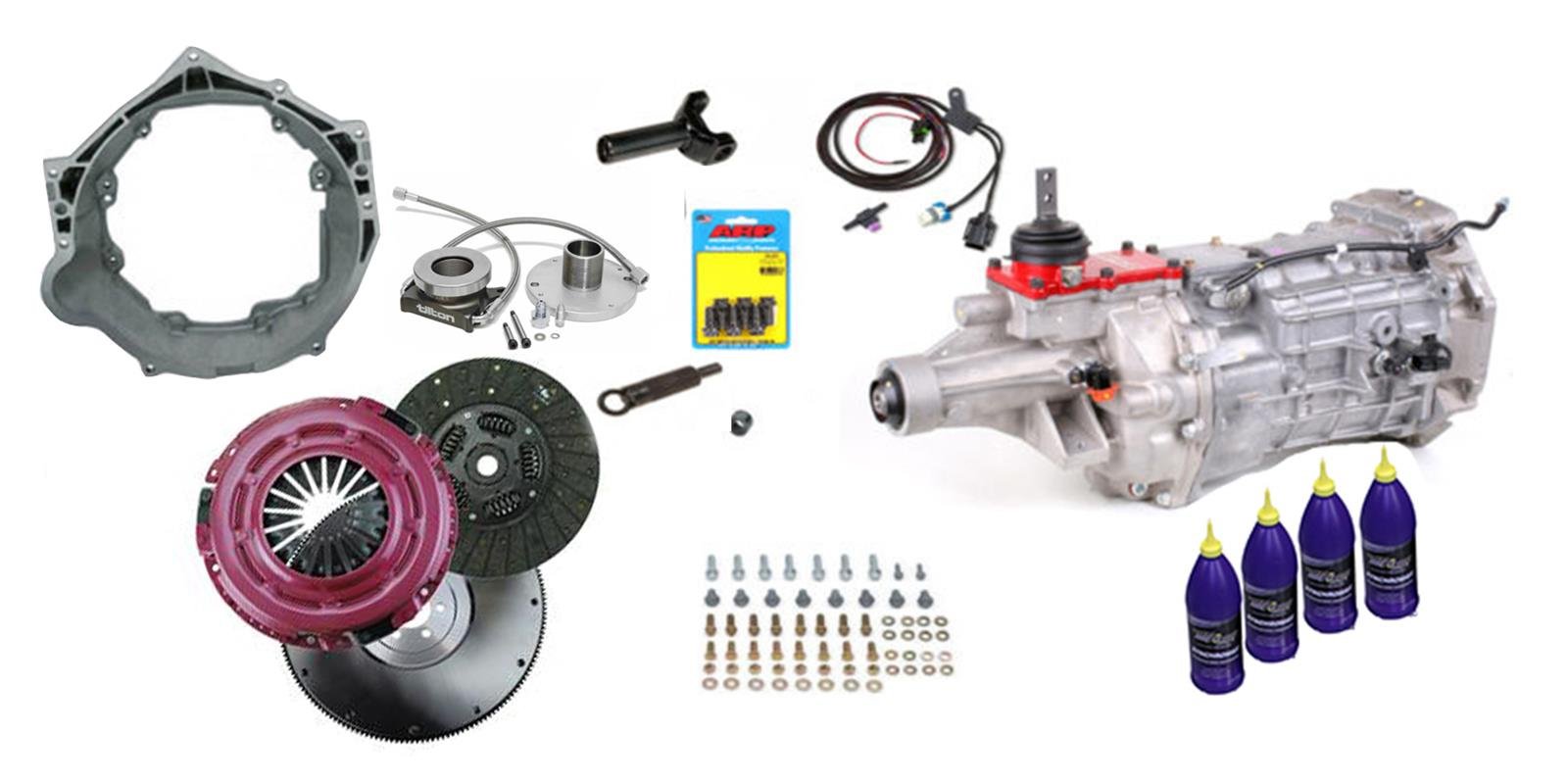

Special Attention: Includes transmission, bellhousing, clutch, hardware, hydraulic throwout bearing, fluid, pigtails, yoke and transmission mount.

Bowler Performance GM LS T-56 Magnum 6-Speed Transmission Packages

Bowler Performance GM LS T-56 Magnum 6-speed transmission packages are designed, tested, and built for the aftermarket. The Magnum offers a “no compromise solution” for your hot rod project, and is rated to handle tire blistering torque. Weighing in at 135 lbs., the T-56 features a single rail shifter design, 3-piece synchronizer assemblies, and three shift lever locations. Choose the Magnum model with the gear ratios you prefer.

Packages feature:

* T-56 Magnum 6-speed transmission
* LS aluminum bellhousing
* OE LS throwout bearing/hydraulic slave with -4AN inlet and remote bleeder
* Flywheel, clutch, bolts
* Billet 31-Spline 1350 Series slip yoke
* Dial indicator plate for concentric bellhousing alignment
* All-in-One harness with reverse lock-out control module
* Energy Suspension mount
* 4 qts. of Royal Purple Synchromax fluid
* 12-month warranty
